0.6/1KV VLV23-Aluminium Conductor PVC Insulated Steel Tape Armoured PE Sheathed Power Cable
1-4 Core AL/PVC/PVC/STA/PE Cross Sectional Structure Picture For 0.6/1KV

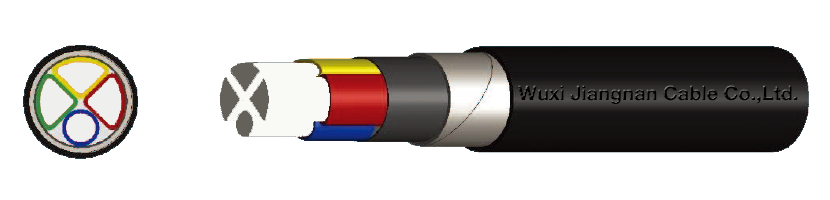

3+1 Core AL/PVC/PVC/STA/PE Power Cable For 0.6/1KV

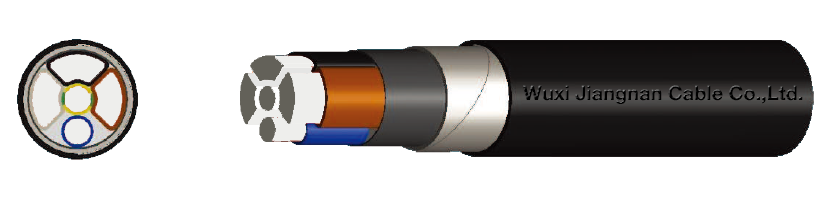

3+2 Core AL/PVC/PVC/STA/PE Power Cable For 0.6/1KV

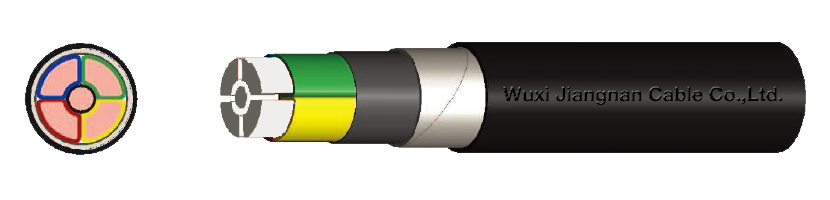

4 Core AL/PVC/PVC/STA/PE Power Cable For 0.6/1KV

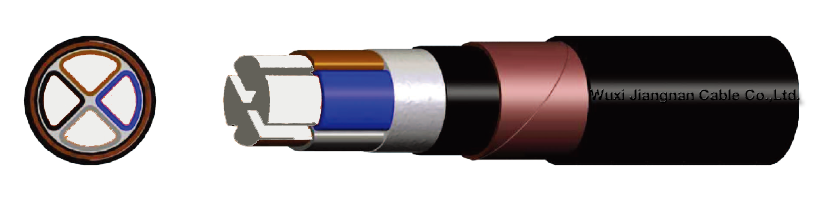

4+1 AL/PVC/PVC/STA/PE Power Cable For 0.6/1KV
APPLICATION
0.6/1KV VLV23-Aluminium Conductor PVC Insulated Steel Tape Armoured PE Sheathed Power Cable.
Aluminium PE Sheathed STA PVC Cable product is suitable for using in power distribution networks or fixed installations for industrial equipments with rated voltage up to and including 0.6/1KV.
CABLE STANDARDS
GB/T12706-2008,IEC,BS,ASTM and etc. upon request.
BASIC INFORMATION
Code Name
VLV23
Rated Voltage (Uo/U)
0.6/1KV
Cable Structure
Aluminium Conductor/PVC Insulation/PVC Inner Sheath/Steel Tape Armoured/PE Outer Sheath
CONSTRUCTION
Conductor
Number of conductors:1,2,3,4,5,3+1,4+1
The conductors shall comply with the requirement given in IEC
Insulation
PVC(Polyvinyl Chloride) according to IEC
Inner Sheath
PVC(Polyvinyl Chloride) according to IEC
Outer Sheath
PE(Polyethylene)according to IEC
Armoured
Steel Tape
CHARACTERISTICS
Conductor temperature
Maximum conductor temperature in normal use: 70℃
Max.short-circuit temperature
Maximum shall not exceed 160℃(5s Max,Duration)
Installation temperature
Ambient temperature under installation shall not be below 0℃
Minimum bending radius
The bending radius of cable: (D-Diameter of cable)
————————————-≥15D
PRODUCTION RANGE
| No. of Cores | Nominal Cross Sectional Area m² |
|---|---|
| 1* | 10-800 |
| 2 | 4-400 |
| 3 | 4-630 |
| 4 | 4-500 |
| 3+1 | 4-630 |
| 5 | 4-500 |
| 4+1 | 4-500 |
| 3+2 | 4-500 |
| Nominal Cross Sectional Area(mm²) | NO.of Cores | Nominal Insulation Thickness(mm) | Approx Overall Diameter(mm) | Cable Weight Max(kg/km) |
|---|---|---|---|---|
| 10 | 1 | 1 | 11.5 | 190 |
| 16 | 1 | 1 | 12.5 | 230 |
| 25 | 1 | 1.2 | 14.3 | 295 |
| 35 | 1 | 1.2 | 15.4 | 348 |
| 50* | 1 | 1.4 | 16.6 | 420 |
| 70* | 1 | 1.4 | 18.4 | 520 |
| 95* | 1 | 1.6 | 20.4 | 655 |
| 120* | 1 | 1.6 | 21.8 | 725 |
| 150* | 1 | 1.8 | 23.6 | 875 |
| 185* | 1 | 2 | 25.7 | 1000 |
| 240* | 1 | 2.2 | 28.3 | 1240 |
| 300* | 1 | 2.4 | 31.2 | 1680 |
| 400* | 1 | 2.6 | 34.3 | 2050 |
| 500* | 1 | 2.8 | 39.4 | 2710 |
| 630* | 1 | 2.8 | 44.5 | 3200 |
| 800* | 1 | 2.9 | 51.3 | 4060 |
| 4 | 2 | 1 | 14.1 | 255 |
| 6 | 2 | 1 | 15.1 | 292 |
| 10 | 2 | 1 | 17.4 | 368 |
| 16 | 2 | 1 | 19.4 | 454 |
| 25 | 2 | 1.2 | 23 | 610 |
| 35 | 2 | 1.2 | 25.2 | 729 |
| 50* | 2 | 1.4 | 27.6 | 733 |
| 70* | 2 | 1.4 | 31.4 | 1190 |
| 95* | 2 | 1.6 | 37 | 1504 |
| 120* | 2 | 1.6 | 40 | 1731 |
| 150* | 2 | 1.8 | 44 | 2143 |
| 185* | 2 | 2 | 48.4 | 2458 |
| 240* | 2 | 2.2 | 55.2 | 3554 |
| 300* | 2 | 2.4 | 60.6 | 4279 |
| 4 | 3 | 1 | 14.7 | 289 |
| 6 | 3 | 1 | 15.8 | 335 |
| 10 | 3 | 1 | 18.3 | 429 |
| 16 | 3 | 1 | 20.5 | 538 |
| 25 | 3 | 1.2 | 24.3 | 734 |
| 35 | 3 | 1.2 | 26.7 | 887 |
| 50* | 3 | 1.4 | 29.5 | 1004 |
| 70* | 3 | 1.4 | 33.6 | 1604 |
| 95* | 3 | 1.6 | 39.5 | 2056 |
| 120* | 3 | 1.6 | 42.7 | 2396 |
| 150* | 3 | 1.8 | 47 | 2866 |
| 185* | 3 | 2 | 51.7 | 3421 |
| 240* | 3 | 2.2 | 57.7 | 4243 |
| 300* | 3 | 2.4 | 63.9 | 5114 |
| 400* | 3 | 2.6 | 71.2 | 6785 |
| 4 | 4 | 1 | 15.8 | 336 |
| 6 | 4 | 1 | 17 | 392 |
| 10 | 4 | 1 | 19.8 | 510 |
| 16 | 4 | 1 | 22.3 | 645 |
| 25 | 4 | 1.2 | 26.6 | 891 |
| 35 | 4 | 1.2 | 29.5 | 1084 |
| 50* | 4 | 1.4 | 33.6 | 1583 |
| 70* | 4 | 1.4 | 39.5 | 1999 |
| 95* | 4 | 1.6 | 44.7 | 2599 |
| 120* | 4 | 1.6 | 48.3 | 3032 |
| 150* | 4 | 1.8 | 52.9 | 3628 |
| 185* | 4 | 2 | 58.3 | 4327 |
| 240* | 4 | 2.2 | 65 | 5347 |
| 300* | 4 | 2.4 | 71.9 | 6480 |
| 400* | 4 | 2.6 | 81.4 | 8590 |
| 4 | 5 | 1 | 17 | 385 |
| 6 | 5 | 1 | 18.4 | 464 |
| 10 | 5 | 1 | 21.5 | 607 |
| 16 | 5 | 1 | 24.2 | 772 |
| 25 | 5 | 1.2 | 29.1 | 1073 |
| 35 | 5 | 1.2 | 32.5 | 1649 |
| 50* | 5 | 1.4 | 37.3 | 2001 |
| 70* | 5 | 1.4 | 42.4 | 2504 |
| 95* | 5 | 1.6 | 48.2 | 3264 |
| 120* | 5 | 1.6 | 52.1 | 3827 |
| 150* | 5 | 1.8 | 57.4 | 4663 |
| 185* | 5 | 2 | 63.5 | 5189 |
| 240* | 5 | 2.2 | 70.9 | 6817 |
| 300* | 5 | 2.4 | 78.8 | 8356 |
| 400* | 5 | 2.6 | 89 | 11274 |
