0.6/1KV YJV-Copper Conductor XLPE Insulated PVC Sheathed Power Cable

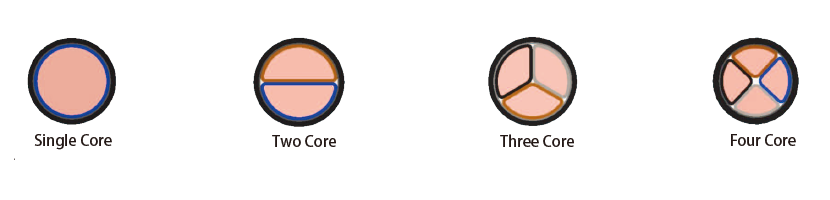

0.6-1KV YJV 1~4 core Copper Conductor XLPE Insulated PVC Sheathed Power Cable Cross Section

1-4 Core CU/XLPE/PVC Cross Sectional Structure Picture For 0.6/1KV

0.6-1KV YJV 3+1 core Copper Conductor XLPE Insulated PVC Sheathed Power Cable Description

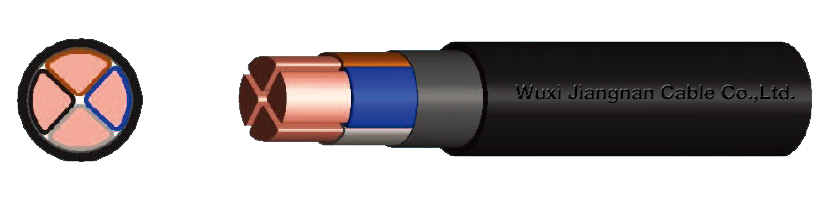

3+1 Core CU/XLPE/PVC Power Cable For 0.6/1KV

0.6-1KV YJV 3+2 core Copper Conductor XLPE Insulated PVC Sheathed Power Cable Description

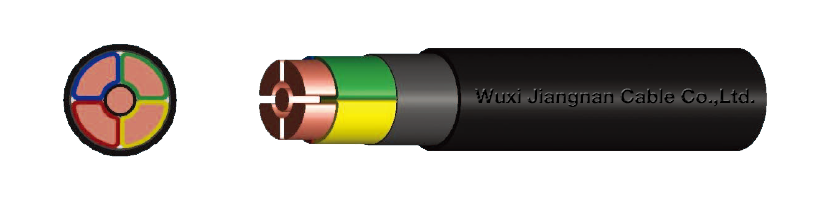

3+2 Core CU/XLPE/PVC Power Cable For 0.6/1KV

0.6-1KV YJV 4 core Copper Conductor XLPE Insulated PVC Sheathed Power Cable Description

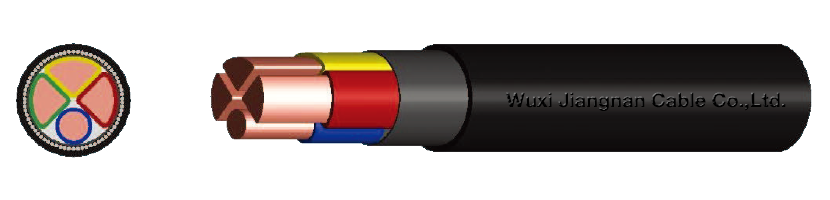

4 Core CU/XLPE/PVC Power Cable For 0.6/1KV

0.6-1KV YJV 4+1 core Copper Conductor XLPE Insulated PVC Sheathed Power Cable Description

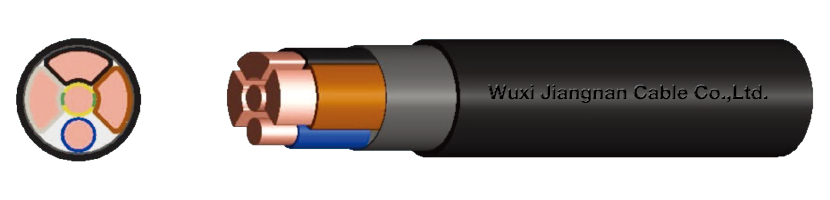

4+1 Core CU/XLPE/PVC Power Cable For 0.6/1KV

SPECIFICATION
CABLE DIMENSIONS

APPLICATION
YJV-Copper Conductor XLPE Insulated PVC Sheathed Power Cable.
Copper Conductor XLPE PVC LSZH Cable is suitable for using in power distribution networks or fixed installations for industrial equipments with rated voltage up to and including 0.6/1KV.

CABLE STANDARDS
GB/T12706-2008,IEC,BS,ASTM and etc. upon request.

BASIC INFORMATION
Code Name
YJV
Rated Voltage (Uo/U)
0.6/1KV
Cable Structure
Copper Conductor/XLPE Insulation/PVC Sheath

CONSTRUCTION
Conductor
Number of conductors:1,2,3,4,5,3+1,4+1
The conductors shall comply with the requirement given in IEC
Insulation
XLPE(Cross-linked Polyethylene) according to IEC
Sheath
PVC(Polyaluminium Chloride) according to IEC

CHARACTERISTICS
Conductor temperature
Maximum conductor temperature in normal use: 90℃
Max.short-circuit temperature
Maximum shall not exceed 250℃(5s Max,Duration)
Installation temperature
Ambient temperature under installation shall not be below 0℃
Minimum bending radius
The bending radius of cable: (D-Diameter of cable)
————————————-≥15D

PRODUCTION RANGE

NO. of Cores	Nominal Cross Sectional area m²
1*	1.5-800
2	1.5-400
3	1.5-630
4	1.5-500
3+1	1.5-630
5	1.5-500
4+1	1.5-500
3+2	1.5-500

Nominal Cross Sectional Area(mm²)	NO.of Cores	Nominal Insulation Thickness(mm)	Approx Overall Diameter(mm)	Cable Weight Max(kg/km)
1.5	1	0.7	5.6	52
2.5	1	0.7	6	65
4	1	0.7	6.4	83
6	1	0.7	7	106
10	1	0.7	8.3	157
16	1	0.7	9.3	221
25	1	0.9	11.2	334
35	1	0.9	12.4	435
50*	1	1	14.1	576
70*	1	1.1	16.1	793
95*	1	1.1	18.2	1066
120*	1	1.2	18.7	1275
150*	1	1.4	20.7	154
185*	1	1.6	22.6	1868
240*	1	1.7	25.1	2399
300*	1	1.8	27.5	3028
400*	1	2	30.9	3888
500*	1	2.2	34.5	4953
630*	1	2.4	38.5	6164
800*	1	2.8	46	7909
1.5	2	0.7	9.7	99
2.5	2	0.7	10.5	127
4	2	0.7	11.5	164
6	2	0.7	12.5	214
10	2	0.7	14.8	324
16	2	0.7	16.8	460
25	2	0.9	20.4	691
35	2	0.9	22.6	907
50*	2	1	24.6	1039
70*	2	1.1	28.6	1456
95*	2	1.1	32.2	1973
120*	2	1.2	35.6	2459
150*	2	1.4	39.4	3398
185*	2	1.6	43.8	4042
240*	2	1.7	49.6	5264
300*	2	1.8	54.8	7345
1.5	3	0.7	10.2	120
2.5	3	0.7	11	158
4	3	0.7	12	210
6	3	0.7	13.1	280
10	3	0.7	15.6	430
16	3	0.7	17.8	623
25	3	0.9	21.7	947
35	3	0.9	24.1	1254
50*	3	1	26.2	1518
70*	3	1.1	30.8	2143
95*	3	1.1	35	2897
120*	3	1.2	38.7	3834
150*	3	1.4	43	4827
185*	3	1.6	47.7	5747
240*	3	1.7	53.3	7448
300*	3	1.8	59.1	9463
400*	3	2	66.4	12225
1.5	4	0.7	10.9	145
2.5	4	0.7	11.8	194
4	4	0.7	13	261
6	4	0.7	14.2	352
10	4	0.7	12	547
16	4	0.7	19.4	799
25	4	0.9	23.8	1222
35	4	0.9	26.5	1626
50*	4	1	29.1	2005
70*	4	1.1	34.1	2855
95*	4	1.1	38.8	3843
120*	4	1.2	43.1	5052
150*	4	1.4	47.6	6336
185*	4	1.6	53.1	7569
240*	4	1.7	59.3	9809
300*	4	1.8	65.8	12467
400*	4	2	73.9	16139
1.5	5	0.7	11.7	171
2.5	5	0.7	12.7	231
4	5	0.7	14	314
6	5	0.7	15.4	426
10	5	0.7	18.5	666
16	5	0.7	21.2	978
25	5	0.9	26.1	1503
35	5	0.9	29	2004
50*	5	1	32.7	2605
70*	5	1.1	38.3	3617
95*	5	1.1	43.1	5006
120*	5	1.2	47.6	6276
150*	5	1.4	52.8	7897
185*	5	1.6	58.9	9297
240*	5	1.7	65.8	12220
300*	5	1.8	72.9	15530
400*	5	2	82.12	20143
