0.6/1KV YJV32-Copper Conductor XLPE Insulated Steel Wire PVC Sheathed Power Cable

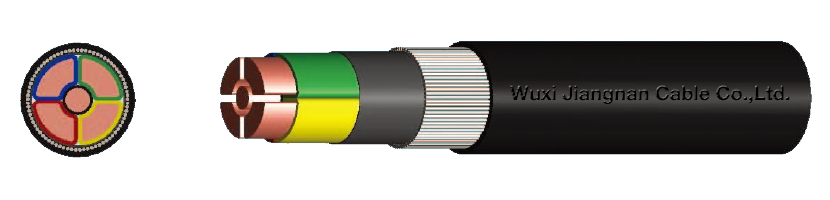

1-4 Core CU/XLPE/PVC/SWA/PVC Cross Sectional Structure Picture For 0.6/1KV

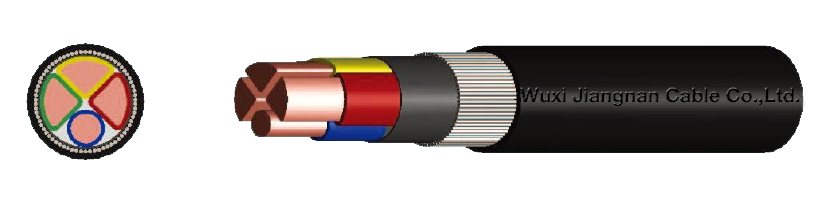

3+1 Core CU/XLPE/PVC/SWA/PVC Power Cable For 0.6/1KV

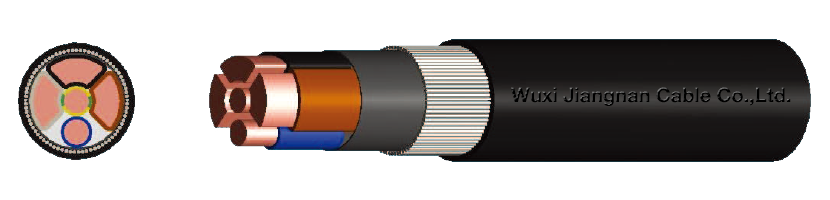

3+2 Core CU/XLPE/PVC/SWA/PVC Power Cable For 0.6/1KV

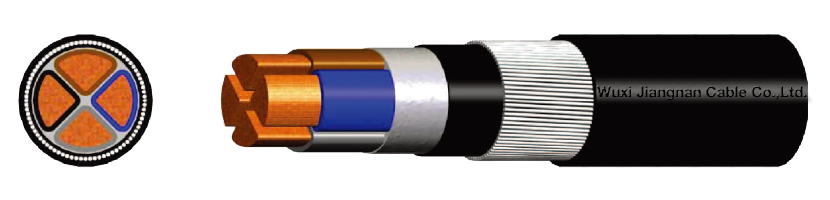

4 Core CU/XLPE/PVC/SWA/PVC Power Cable For 0.6/1KV
4+1 Core CU/XLPE/PVC/SWA/PVC For 0.6/1KV
APPLICATION
YJV32-Copper Conductor XLPE Insulated Steel Wire Armoured PVC Sheathed Power Cable.
Copper XLPE SWA PVC LSZH Cable is suitable for using in power distribution networks or fixed installations for industrial equipments with rated voltage up to and including 0.6/1KV.
CABLE STANDARDS
GB/T12706-2008,IEC,BS,ASTM and etc. upon request.
BASIC INFORMATION
Code Name
YJV32
Rated Voltage (Uo/U)
0.6/1KV
Cable Structure
Copper Conductor / XLPE Insulation / Steel Wire Armoured / PVC Sheath
CONSTRUCTION
Conductor
Number of conductors:1,2,3,4,5,3+1,4+1
The conductors shall comply with the requirement given in IEC
Insulation
XLPE (Cross-linked Polyethylene) according to IEC
Sheath
PVC(Polyaluminium Chloride) according to IEC
Armoured
Steel Wire
CHARACTERISTICS
Conductor temperature
Maximum conductor temperature in normal use: 90℃
Max.short-circuit temperature
Maximum shall not exceed 250℃(5s Max,Duration)
Installation temperature
Ambient temperature under installation shall not be below 0℃
Minimum bending radius
The bending radius of cable: (D-Diameter of cable)
————————————-≥15D
PRODUCTION RANGE
| NO. of Cores | Nominal Cross Sectional area m² |
|---|---|
| 2 | 10-400 |
| 3 | 10-630 |
| 4 | 10-500 |
| 3+1 | 10-630 |
| 5 | 10-500 |
| 4+1 | 10-500 |
| 3+2 | 10-500 |
| Nominal Cross Sectional Area(mm²) | NO.of Cores | Nominal Insulation Thickness(mm) | Approx Overall Diameter(mm) | Cable Weight Max(kg/km) |
|---|---|---|---|---|
| 10 | 2 | 0.7 | 20 | 912 |
| 16 | 2 | 0.7 | 22 | 920 |
| 25 | 2 | 0.9 | 25.6 | 1156 |
| 35 | 2 | 0.9 | 27.8 | 1328 |
| 50* | 2 | 1 | 30 | 1231 |
| 70* | 2 | 1.1 | 35.2 | 1733 |
| 95* | 2 | 1.1 | 39 | 2022 |
| 120* | 2 | 1.2 | 42.4 | 2328 |
| 150* | 2 | 1.4 | 47.2 | 3799 |
| 185* | 2 | 1.6 | 52.2 | 4305 |
| 240* | 2 | 1.7 | 57.8 | 5124 |
| 300* | 2 | 1.8 | 63.5 | 6408 |
| 10 | 3 | 0.7 | 20.8 | 1049 |
| 16 | 3 | 0.7 | 23 | 1323 |
| 25 | 3 | 0.9 | 26.9 | 1779 |
| 35 | 3 | 0.9 | 29.5 | 2174 |
| 50* | 3 | 1 | 31.8 | 2433 |
| 70* | 3 | 1.1 | 37.6 | 3429 |
| 95* | 3 | 1.1 | 41.8 | 4327 |
| 120* | 3 | 1.2 | 46.7 | 5567 |
| 150* | 3 | 1.4 | 51.4 | 7269 |
| 185* | 3 | 1.6 | 56.1 | 8466 |
| 240* | 3 | 1.7 | 62.1 | 10508 |
| 300* | 3 | 1.8 | 67.9 | 12831 |
| 400* | 3 | 2 | 76.5 | 17033 |
| 10 | 4 | 0.7 | 22.2 | 1217 |
| 16 | 4 | 0.7 | 24.6 | 1560 |
| 25 | 4 | 0.9 | 29 | 2132 |
| 35 | 4 | 0.9 | 31.9 | 2649 |
| 50* | 4 | 1 | 35.5 | 3218 |
| 70* | 4 | 1.1 | 40.9 | 4312 |
| 95* | 4 | 1.1 | 46.8 | 5468 |
| 120* | 4 | 1.2 | 57.5 | 7479 |
| 150* | 4 | 1.4 | 56 | 9090 |
| 185* | 4 | 1.6 | 61.9 | 10587 |
| 240* | 4 | 1.7 | 68.1 | 13238 |
| 300* | 4 | 1.8 | 75.9 | 16273 |
| 400* | 4 | 2 | 84.4 | 21519 |
| 10 | 5 | 0.7 | 23.7 | 1391 |
| 16 | 5 | 0.7 | 26.4 | 1805 |
| 25 | 5 | 0.9 | 31.5 | 2510 |
| 35 | 5 | 0.9 | 35.4 | 3375 |
| 50* | 5 | 1 | 39.5 | 4093 |
| 70* | 5 | 1.1 | 45.1 | 5326 |
| 95* | 5 | 1.1 | 51.3 | 7432 |
| 120* | 5 | 1.2 | 56 | 8999 |
| 150* | 5 | 1.4 | 61.6 | 10936 |
| 185* | 5 | 1.6 | 67.7 | 12793 |
| 240* | 5 | 1.7 | 75.9 | 16041 |
| 300* | 5 | 1.8 | 83.6 | 20754 |
| 400* | 5 | 2 | 92.6 | 26123 |
