0.6/1KV YJV33-Copper Conductor XLPE Insulated Steel Wire PE Sheathed Power Cable
1-4 Core CU/XLPE/PVC/SWA/PE Cross Sectional Structure Picture For 0.6/1KV

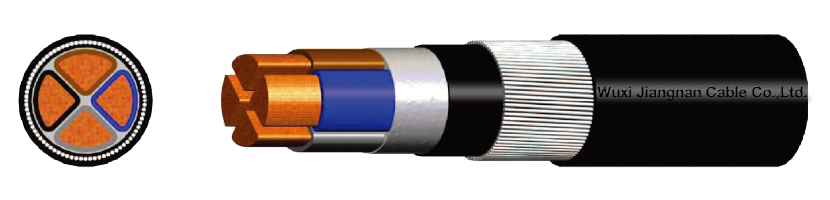

3+1 Core CU/XLPE/PVC/SWA/PE Power Cable For 0.6/1KV

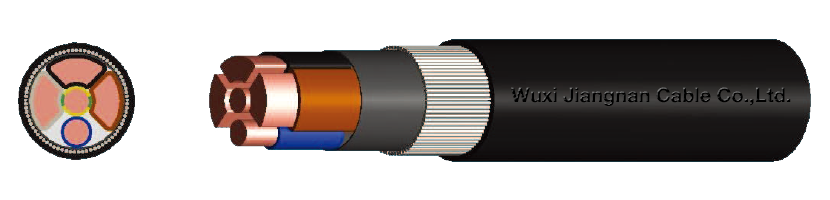

3+2 Core CU/XLPE/PVC/SWA/PE Power Cable For 0.6/1KV

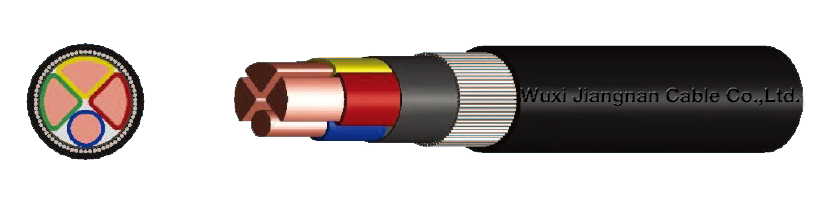

4 Core CU/XLPE/PVC/SWA/PE Power Cable For 0.6/1KV

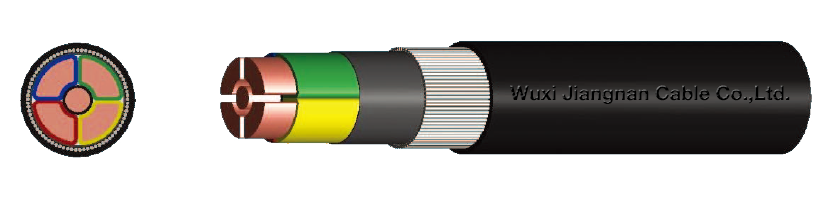

4+1 Core CU/XLPE/PVC/SWA/PE Power Cable For 0.6/1KV
APPLICATION
YJV33-Copper Conductor XLPE Insulated Steel Wire Armoured PE Sheathed Power Cable.
Copper Conductor XLPE SWA LSZH Cable is suitable for using in power distribution networks or fixed installations for industrial equipments with rated voltage up to and including 0.6/1KV.
CABLE STANDARDS
GB/T12706-2008,IEC,BS,ASTM and etc. upon request.
BASIC INFORMATION
Code Name
YJV33
Rated Voltage (Uo/U)
0.6/1KV
Cable Structure
Copper Conductor / XLPE Insulation/Steel Wire Armoured / PE Sheath
CONSTRUCTION
Conductor
Number of conductors:1,2,3,4,5,3+1,4+1
The conductors shall comply with the requirement given in IEC
Insulation
XLPE(Cross-linked Polyethylene) according to IEC
Sheath
PE(Polyethylene) according to IEC
Armoured
Steel Wire
CHARACTERISTICS
Conductor temperature
Maximum conductor temperature in normal use: 90℃
Max.short-circuit temperature
Maximum shall not exceed 250℃(5s Max,Duration)
Installation temperature
Ambient temperature under installation shall not be below 0℃
Minimum bending radius
The bending radius of cable: (D-Diameter of cable)
————————————-≥15D
PRODUCTION RANGE
| NO. of Cores | Nominal Cross sectional area m² |
|---|---|
| 2 | 10-400 |
| 3 | 10-630 |
| 4 | 10-500 |
| 3+1 | 10-630 |
| 5 | 10-500 |
| 4+1 | 10-500 |
| 3+2 | 10-500 |
| Nominal Cross Sectional Area(mm²) | NO.of Cores | Nominal Insulation Thickness(mm) | Approx Overall Diameter(mm) | Cable Weight Max(kg/km) |
|---|---|---|---|---|
| 10 | 2 | 0.7 | 20 | 912 |
| 16 | 2 | 0.7 | 22 | 920 |
| 25 | 2 | 0.9 | 25.6 | 1156 |
| 35 | 2 | 0.9 | 27.8 | 1328 |
| 50* | 2 | 1 | 30 | 1231 |
| 70* | 2 | 1.1 | 35.2 | 1733 |
| 95* | 2 | 1.1 | 39 | 2022 |
| 120* | 2 | 1.2 | 42.4 | 2328 |
| 150* | 2 | 1.4 | 47.2 | 3799 |
| 185* | 2 | 1.6 | 52.2 | 4305 |
| 240* | 2 | 1.7 | 57.8 | 5124 |
| 300* | 2 | 1.8 | 63.5 | 6408 |
| 10 | 3 | 0.7 | 20.8 | 1049 |
| 16 | 3 | 0.7 | 23 | 1323 |
| 25 | 3 | 0.9 | 26.9 | 1779 |
| 35 | 3 | 0.9 | 29.5 | 2174 |
| 50* | 3 | 1 | 31.8 | 2433 |
| 70* | 3 | 1.1 | 37.6 | 3429 |
| 95* | 3 | 1.1 | 41.8 | 4327 |
| 120* | 3 | 1.2 | 46.7 | 5567 |
| 150* | 3 | 1.4 | 51.4 | 7269 |
| 185* | 3 | 1.6 | 56.1 | 8466 |
| 240* | 3 | 1.7 | 62.1 | 10508 |
| 300* | 3 | 1.8 | 67.9 | 12831 |
| 400* | 3 | 2 | 76.5 | 17033 |
| 10 | 4 | 0.7 | 22.2 | 1217 |
| 16 | 4 | 0.7 | 24.6 | 1560 |
| 25 | 4 | 0.9 | 29 | 2132 |
| 35 | 4 | 0.9 | 31.9 | 2649 |
| 50* | 4 | 1 | 35.5 | 3218 |
| 70* | 4 | 1.1 | 40.9 | 4312 |
| 95* | 4 | 1.1 | 46.8 | 5468 |
| 120* | 4 | 1.2 | 57.5 | 7479 |
| 150* | 4 | 1.4 | 56 | 9090 |
| 185* | 4 | 1.6 | 61.9 | 10587 |
| 240* | 4 | 1.7 | 68.1 | 13238 |
| 300* | 4 | 1.8 | 75.9 | 16273 |
| 400* | 4 | 2 | 84.4 | 21519 |
| 10 | 5 | 0.7 | 23.7 | 1391 |
| 16 | 5 | 0.7 | 26.4 | 1805 |
| 25 | 5 | 0.9 | 31.5 | 2510 |
| 35 | 5 | 0.9 | 35.4 | 3375 |
| 50* | 5 | 1 | 39.5 | 4093 |
| 70* | 5 | 1.1 | 45.1 | 5326 |
| 95* | 5 | 1.1 | 51.3 | 7432 |
| 120* | 5 | 1.2 | 56 | 8999 |
| 150* | 5 | 1.4 | 61.6 | 10936 |
| 185* | 5 | 1.6 | 67.7 | 12793 |
| 240* | 5 | 1.7 | 75.9 | 16041 |
| 300* | 5 | 1.8 | 83.6 | 20754 |
| 400* | 5 | 2 | 92.6 | 26123 |
